BS-PR-703 - Skeletal animation import, preview, and authoring workflow #46

New Issue

Rbanh · 2026-07-10T04:04:44-04:00

Rbanh commented

2026-07-10 04:04:44 -04:00

Summary

Promote animation/skinning metadata from import warnings to a usable production workflow.

Scope

Normalize skeleton, skin, clip, and animation-event artifacts for supported glTF/FBX inputs.
Add animated actor components with stable asset references and hydration.
Asset Browser clip/skeleton inspection, thumbnail or scrub preview, loop/range controls, and drag placement.
Minimal animation graph/state-machine authoring suitable for gameplay integration.
Retargeting policy and diagnostics for mismatched skeletons.

Acceptance criteria

A skinned model and its clips import, preview, save, hydrate, and play in PIE.
Clip references survive asset moves through stable IDs.
Missing/mismatched skeletons produce actionable diagnostics.
Animation state changes can be driven by a game extension API.
Sample fixture and automated import/round-trip coverage ship.

## Summary Promote animation/skinning metadata from import warnings to a usable production workflow. ## Scope - Normalize skeleton, skin, clip, and animation-event artifacts for supported glTF/FBX inputs. - Add animated actor components with stable asset references and hydration. - Asset Browser clip/skeleton inspection, thumbnail or scrub preview, loop/range controls, and drag placement. - Minimal animation graph/state-machine authoring suitable for gameplay integration. - Retargeting policy and diagnostics for mismatched skeletons. ## Acceptance criteria - [ ] A skinned model and its clips import, preview, save, hydrate, and play in PIE. - [ ] Clip references survive asset moves through stable IDs. - [ ] Missing/mismatched skeletons produce actionable diagnostics. - [ ] Animation state changes can be driven by a game extension API. - [ ] Sample fixture and automated import/round-trip coverage ship.


1.2 MiB

0033-dedicated-skinned-mesh-renderer.md

3.2 KiB

Rbanh added this to the M7 - Content production and shipping milestone 2026-07-10 04:04:44 -04:00

Rbanh added the

labels 2026-07-10 04:04:44 -04:00

Rbanh referenced this issue

2026-07-10 04:05:27 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1

Rbanh commented

2026-07-11 12:42:10 -04:00

Implemented and production-accepted in pushed commit 0553a85 (with prerequisite editor workflow fixes in cc1fa6e).

Acceptance evidence:

Automated: cargo test -p editor -p game -p scene -p shared --lib passed with 155 editor, 30 game, 50 scene (1 migration test intentionally ignored), and 67 shared tests.
Static checks: cargo fmt --all -- --check, git diff --check, and strict cargo clippy -p editor -p game -p scene -p shared --lib -- -D warnings passed.
Project validation: cargo validate-levels resolved 34 runtime dependencies with 0 blocking errors.
Import/browser: committed RobotExpressive GLB imported as stable model UUID 339488ab-16a6-47c4-a0ea-0f97ff7a6393; schema-v2 manifest exposed 2 rigs and 14 clips. Expanded skeleton/clip shelf stayed stable, including safe full-scene thumbnails for skinned primitives.
Authoring: dragging Walking created and selected one hydrated imported-model actor with an Animation Controller. Play, pause, and scrub reached 0.91/0.96s without dirtying authored data.
Persistence: saved scene retained the stable model UUID and animation:clip:10:walking; clean reload hydrated the actor correctly.
PIE: entering play clears paused edit-mode preview state; authored animation advanced in PIE with 11,514 changed pixels between captured robot-region frames and no runtime/render errors.
Move resilience: moving the source to assets/models/characters/robot_expressive.glb preserved UUID 339488ab-16a6-47c4-a0ea-0f97ff7a6393, regenerated manifests at the new path, rehydrated the saved actor, and validated with 0 blockers.
Package/runtime: development package contained the moved GLB, generated static/animation manifests, stable scene references, binary, and metadata. Standalone startup loaded the default scene cleanly; two frames 0.5s apart differed by 372,821 pixels, visibly confirming skeletal playback.
Unsupported/mismatch paths have focused coverage for animated/skinned FBX guidance, multi-root sources, exact rig signatures, missing manifests/clips, and stale runtime graph cleanup.

All BS-PR-703 acceptance gates are satisfied.

Implemented and production-accepted in pushed commit `0553a85` (with prerequisite editor workflow fixes in `cc1fa6e`). Acceptance evidence: - Automated: `cargo test -p editor -p game -p scene -p shared --lib` passed with 155 editor, 30 game, 50 scene (1 migration test intentionally ignored), and 67 shared tests. - Static checks: `cargo fmt --all -- --check`, `git diff --check`, and strict `cargo clippy -p editor -p game -p scene -p shared --lib -- -D warnings` passed. - Project validation: `cargo validate-levels` resolved 34 runtime dependencies with 0 blocking errors. - Import/browser: committed RobotExpressive GLB imported as stable model UUID `339488ab-16a6-47c4-a0ea-0f97ff7a6393`; schema-v2 manifest exposed 2 rigs and 14 clips. Expanded skeleton/clip shelf stayed stable, including safe full-scene thumbnails for skinned primitives. - Authoring: dragging Walking created and selected one hydrated imported-model actor with an Animation Controller. Play, pause, and scrub reached 0.91/0.96s without dirtying authored data. - Persistence: saved scene retained the stable model UUID and `animation:clip:10:walking`; clean reload hydrated the actor correctly. - PIE: entering play clears paused edit-mode preview state; authored animation advanced in PIE with 11,514 changed pixels between captured robot-region frames and no runtime/render errors. - Move resilience: moving the source to `assets/models/characters/robot_expressive.glb` preserved UUID `339488ab-16a6-47c4-a0ea-0f97ff7a6393`, regenerated manifests at the new path, rehydrated the saved actor, and validated with 0 blockers. - Package/runtime: development package contained the moved GLB, generated static/animation manifests, stable scene references, binary, and metadata. Standalone startup loaded the default scene cleanly; two frames 0.5s apart differed by 372,821 pixels, visibly confirming skeletal playback. - Unsupported/mismatch paths have focused coverage for animated/skinned FBX guidance, multi-root sources, exact rig signatures, missing manifests/clips, and stale runtime graph cleanup. All BS-PR-703 acceptance gates are satisfied.

Rbanh added reference main

2026-07-11 12:42:16 -04:00

Rbanh closed this issue

2026-07-11 12:42:18 -04:00

Rbanh commented

2026-07-11 17:49:41 -04:00

Corrective architecture follow-up — dedicated skinned renderer (2026-07-11)

The accepted animation workflow remains closed. This follow-up corrects the renderer boundary so rigged, skinned, or animated geometry is no longer represented or hydrated through static-mesh components.

Implemented

Added authored SkinnedMeshRenderer and a dedicated HydratedSkinnedMeshRoot; the runtime path preserves the imported joint hierarchy, inverse bind poses, and Bevy SkinnedMesh bindings.
Model, skinned-primitive, and animation-clip placement now route animated/skinned sources through the skinned renderer instead of StaticMeshRenderer or generic static slots.
Static-mesh manifest schema v2 excludes skin-bound primitives and all animated-source geometry from static placement.
Scene schema v3 migrates legacy animated ModelRef actors to SkinnedMeshRenderer.
Editor inspection and validation now surface the renderer split explicitly and diagnose static-renderer use for animated/skinned sources.

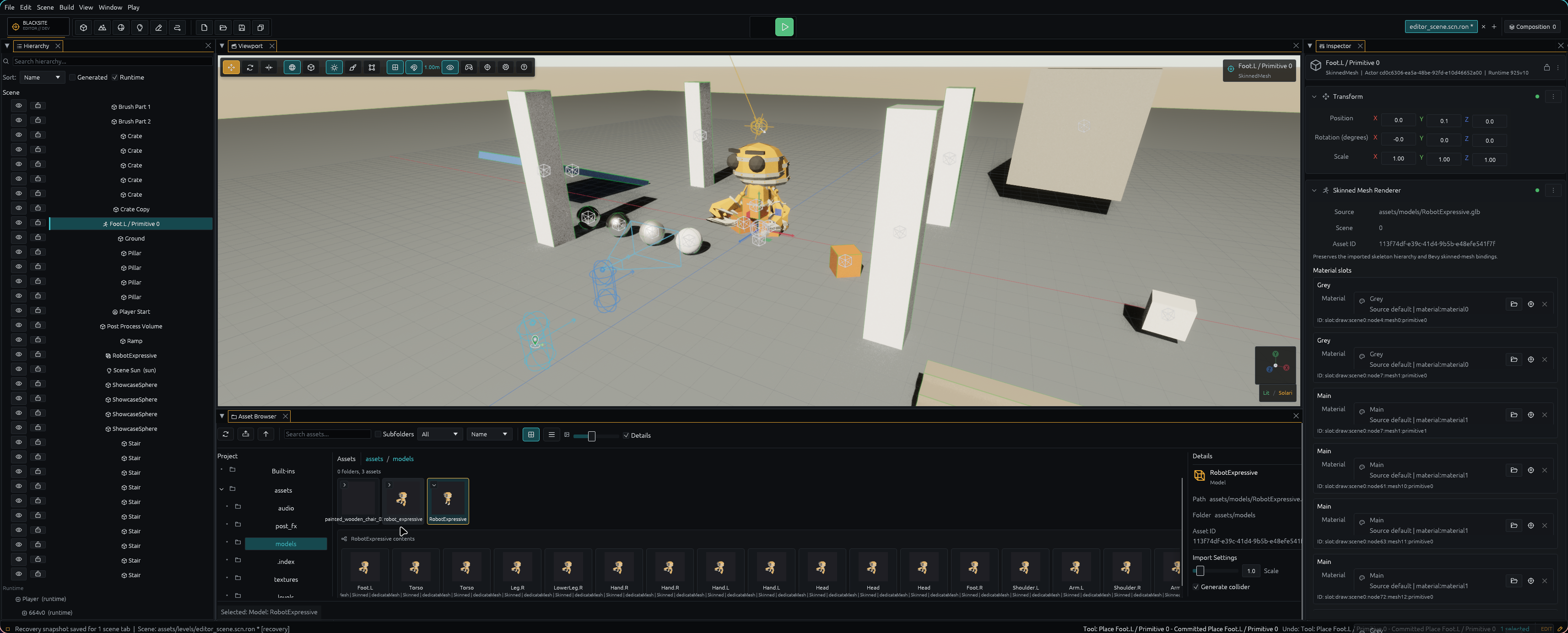

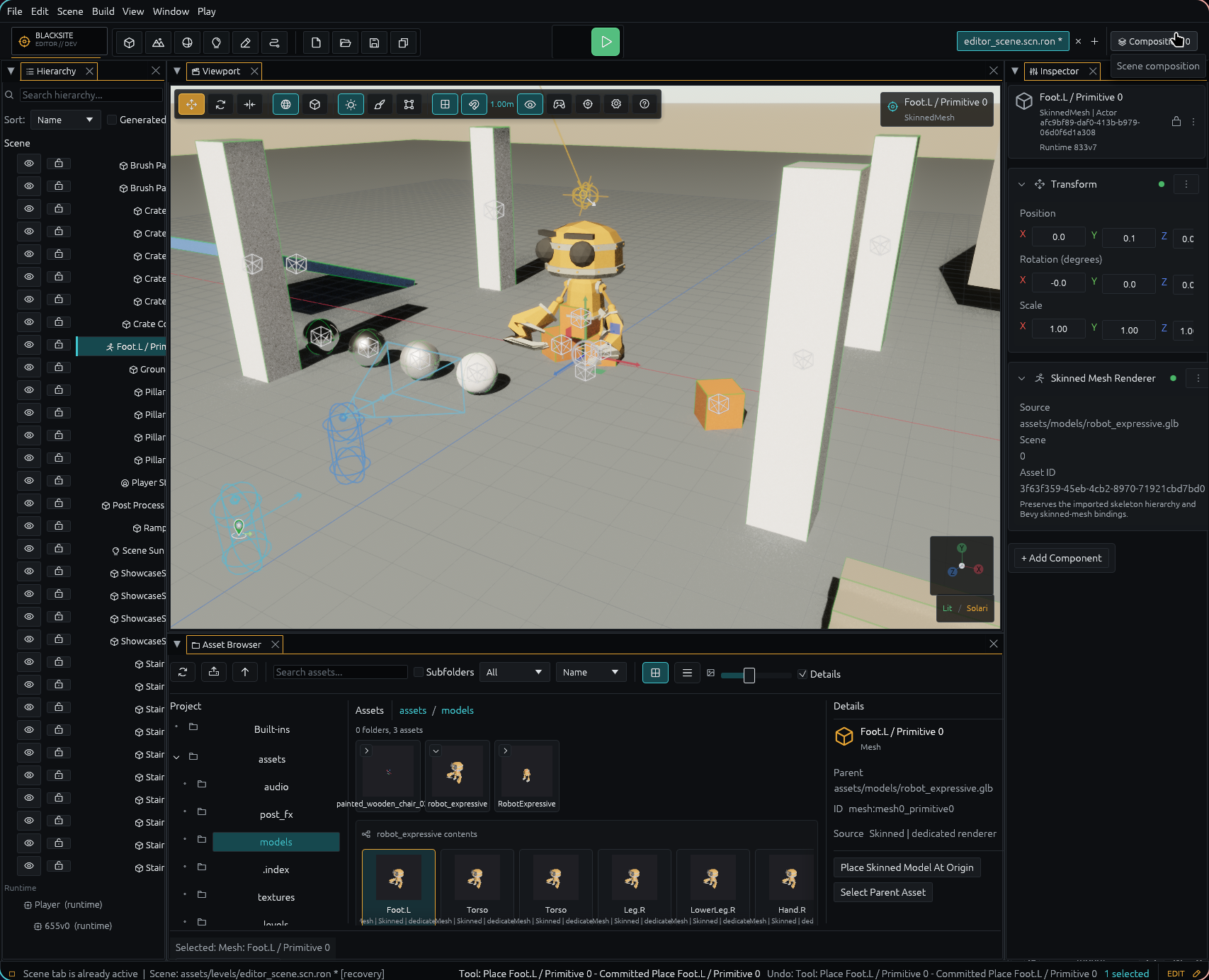

The live editor evidence above shows RobotExpressive as a SkinnedMesh actor, the dedicated Skinned Mesh Renderer inspector card, and the Asset Browser source annotation Skinned | dedicated renderer.

Documentation

ADR 0033 — Dedicated skinned mesh renderer
Repository docs updated locally: README.md, docs/README.md, docs/editor/README.md, docs/editor/animation-authoring.md, docs/editor/architecture.md, and the authoring/hydration ADR links.

Verification

cargo test --workspace passed.
cargo fmt --all -- --check, git diff --check, workspace checks, and strict clippy with warnings denied passed.
Live editor smoke test: RobotExpressive was placed from a marked skinned primitive and hydrated as one selected SkinnedMesh actor with the dedicated renderer card.

Status: implemented and verified in the local worktree; this corrective slice has not yet been committed or pushed. No change to this issue's closed state.

## Corrective architecture follow-up — dedicated skinned renderer (2026-07-11) The accepted animation workflow remains closed. This follow-up corrects the renderer boundary so rigged, skinned, or animated geometry is no longer represented or hydrated through static-mesh components. ![RobotExpressive placed through the dedicated Skinned Mesh Renderer](https://git.spacetrainclubhouse.com/attachments/96585466-9f31-4617-ae28-563b74f57745) ### Implemented - Added authored `SkinnedMeshRenderer` and a dedicated `HydratedSkinnedMeshRoot`; the runtime path preserves the imported joint hierarchy, inverse bind poses, and Bevy `SkinnedMesh` bindings. - Model, skinned-primitive, and animation-clip placement now route animated/skinned sources through the skinned renderer instead of `StaticMeshRenderer` or generic static slots. - Static-mesh manifest schema v2 excludes skin-bound primitives and all animated-source geometry from static placement. - Scene schema v3 migrates legacy animated `ModelRef` actors to `SkinnedMeshRenderer`. - Editor inspection and validation now surface the renderer split explicitly and diagnose static-renderer use for animated/skinned sources. The live editor evidence above shows RobotExpressive as a `SkinnedMesh` actor, the dedicated **Skinned Mesh Renderer** inspector card, and the Asset Browser source annotation **Skinned | dedicated renderer**. ### Documentation - [ADR 0033 — Dedicated skinned mesh renderer](https://git.spacetrainclubhouse.com/attachments/145bda7f-93fc-4f41-9d6b-124be79b616d) - Repository docs updated locally: `README.md`, `docs/README.md`, `docs/editor/README.md`, `docs/editor/animation-authoring.md`, `docs/editor/architecture.md`, and the authoring/hydration ADR links. ### Verification - `cargo test --workspace` passed. - `cargo fmt --all -- --check`, `git diff --check`, workspace checks, and strict clippy with warnings denied passed. - Live editor smoke test: RobotExpressive was placed from a marked skinned primitive and hydrated as one selected `SkinnedMesh` actor with the dedicated renderer card. Status: implemented and verified in the local worktree; this corrective slice has not yet been committed or pushed. No change to this issue's closed state.

Rbanh referenced this issue

2026-07-11 17:50:05 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1

~~Rbanh referenced this issue 2026-07-11 18:49:46 -04:00~~

BS-JD-207 — Renderer material slots, material instances, and exact custom shader surfaces #51

Rbanh reopened this issue

2026-07-11 18:50:02 -04:00

Rbanh referenced this issue

2026-07-11 18:50:23 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1

Rbanh commented

2026-07-11 18:50:38 -04:00

Reopened: default-pose and stop/restore regression

This issue is reopened because the current skinned actor workflow does not yet satisfy the original preview/hydration acceptance criteria.

The RobotExpressive fixture was reproduced outside the editor: its authored default node pose shows the same crouched/disconnected-looking result, while its imported rest/bind pose is coherent. The dedicated skinned renderer is preserving the source hierarchy; the missing product contract is an explicit edit-time pose lifecycle. A second regression is also confirmed: stopping preview clears playback but does not restore the sampled descendant Transform and MorphWeights values.

Corrective acceptance:

Add an optional model import setting that stores an exact stable default clip subasset ID; never guess the first clip or retarget a stale ID by display label.
Capture imported descendant transforms and morph weights once the scene instance is ready and before animation evaluation.
With a valid explicit default clip, sample its configured edit-rest pose; without one, display the captured imported rest pose.
Stop, PIE exit, controller removal, and preview reset restore the captured baseline exactly before any configured edit-rest sample is reapplied.
Validate each skin independently: inverse-bind data exists, joint count matches inverse-bind count, and every joint belongs to the instantiated hierarchy. Shared joints are captured once without conflating distinct skins.
Material-only edits from #51 leave hierarchy, joints, baseline, animation players, and pose unchanged.
RobotExpressive regression coverage includes all 19 imported draw bindings, both skin records, explicit Standing edit-rest configuration, transform restoration, morph-weight restoration, and save/hydrate/PIE round trips.
Link updated animation workflow documentation, automated results, and a committed evaluation screenshot before closure.

Implementation and acceptance evidence are pending; the prior screenshot/ADR attachments remain historical evidence of the dedicated-renderer refactor, not proof that this corrective lifecycle is complete.

### Reopened: default-pose and stop/restore regression This issue is reopened because the current skinned actor workflow does not yet satisfy the original preview/hydration acceptance criteria. The RobotExpressive fixture was reproduced outside the editor: its authored default node pose shows the same crouched/disconnected-looking result, while its imported rest/bind pose is coherent. The dedicated skinned renderer is preserving the source hierarchy; the missing product contract is an explicit edit-time pose lifecycle. A second regression is also confirmed: stopping preview clears playback but does not restore the sampled descendant `Transform` and `MorphWeights` values. Corrective acceptance: - [ ] Add an optional model import setting that stores an exact stable default clip subasset ID; never guess the first clip or retarget a stale ID by display label. - [ ] Capture imported descendant transforms and morph weights once the scene instance is ready and before animation evaluation. - [ ] With a valid explicit default clip, sample its configured edit-rest pose; without one, display the captured imported rest pose. - [ ] Stop, PIE exit, controller removal, and preview reset restore the captured baseline exactly before any configured edit-rest sample is reapplied. - [ ] Validate each skin independently: inverse-bind data exists, joint count matches inverse-bind count, and every joint belongs to the instantiated hierarchy. Shared joints are captured once without conflating distinct skins. - [ ] Material-only edits from #51 leave hierarchy, joints, baseline, animation players, and pose unchanged. - [ ] RobotExpressive regression coverage includes all 19 imported draw bindings, both skin records, explicit Standing edit-rest configuration, transform restoration, morph-weight restoration, and save/hydrate/PIE round trips. - [ ] Link updated animation workflow documentation, automated results, and a committed evaluation screenshot before closure. Implementation and acceptance evidence are pending; the prior screenshot/ADR attachments remain historical evidence of the dedicated-renderer refactor, not proof that this corrective lifecycle is complete.

Rbanh commented

2026-07-12 00:12:25 -04:00

Corrective pose lifecycle implemented locally

The regression acceptance added in comment 863 is now implemented and verified on codex/renderer-material-component-foundation:

one explicit stable default clip ID (RobotExpressive uses Standing), never first-clip guessing;
descendant Transform and MorphWeights baselines captured before evaluation;
exact restore on stop, controller removal, preview reset, and PIE exit;
independent validation for both skin records and all 19 draw bindings;
material-only edits patch the dedicated skinned hierarchy without changing joints, players, baseline, or pose;
live evidence shows the coherent edit pose plus the dedicated renderer/material slots.

Full test counts, documentation paths, screenshots, and the honest Solari deformation boundary are recorded on #51 comment 865.

This issue stays open until the local branch and committed evaluation screenshot are published; no pushed-state claim is being made.

### Corrective pose lifecycle implemented locally The regression acceptance added in [comment 863](https://git.spacetrainclubhouse.com/Falling-Metal-Interactive/Blacksite/issues/46#issuecomment-863) is now implemented and verified on `codex/renderer-material-component-foundation`: - one explicit stable default clip ID (RobotExpressive uses Standing), never first-clip guessing; - descendant `Transform` and `MorphWeights` baselines captured before evaluation; - exact restore on stop, controller removal, preview reset, and PIE exit; - independent validation for both skin records and all 19 draw bindings; - material-only edits patch the dedicated skinned hierarchy without changing joints, players, baseline, or pose; - live evidence shows the coherent edit pose plus the dedicated renderer/material slots. Full test counts, documentation paths, screenshots, and the honest Solari deformation boundary are recorded on [#51 comment 865](https://git.spacetrainclubhouse.com/Falling-Metal-Interactive/Blacksite/issues/51#issuecomment-865). This issue stays open until the local branch and committed evaluation screenshot are published; no pushed-state claim is being made.

Rbanh referenced this issue

2026-07-12 00:12:36 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1

Rbanh commented

2026-07-12 02:36:10 -04:00

Corrective pose-lifecycle acceptance is now published in commit 0798aa5d5724115b198d5ec2a2df57e051b49f60 on codex/renderer-material-component-foundation.

Evidence:

Animation/material/component evaluation record
Dedicated skinned renderer and stable slots
Full automated and live acceptance details are recorded in #51 comment 865, with publication links in #51 comment 878.

The explicit stable default clip, imported transform/morph baselines, exact stop/reset/PIE restoration, independent two-skin validation, 19 draw bindings, material-only pose preservation, and save/hydrate/PIE regression coverage are all implemented and published. Closing BS-PR-703.

Corrective pose-lifecycle acceptance is now published in commit `0798aa5d5724115b198d5ec2a2df57e051b49f60` on `codex/renderer-material-component-foundation`. Evidence: - [Animation/material/component evaluation record](https://git.spacetrainclubhouse.com/Falling-Metal-Interactive/Blacksite/src/commit/0798aa5d5724115b198d5ec2a2df57e051b49f60/docs/editor/evaluations/material-renderer-foundation/README.md) - [Dedicated skinned renderer and stable slots](https://git.spacetrainclubhouse.com/attachments/fb4a04e7-88ac-4946-a81a-ef3d3ba26140) - Full automated and live acceptance details are recorded in #51 comment 865, with publication links in #51 comment 878. The explicit stable default clip, imported transform/morph baselines, exact stop/reset/PIE restoration, independent two-skin validation, 19 draw bindings, material-only pose preservation, and save/hydrate/PIE regression coverage are all implemented and published. Closing BS-PR-703.

Rbanh closed this issue

2026-07-12 02:36:15 -04:00

Rbanh referenced this issue

2026-07-12 22:56:29 -04:00

BS-PR-708 - Dynamic skinned and morph geometry in Solari #54
