BS-JD-301 - Terrain authoring schema and chunked mesh hydration #22

New Issue

Rbanh · 2026-06-06T01:48:05-04:00

Rbanh commented

2026-06-06 01:48:05 -04:00

Summary

Add a height-grid-backed TerrainDesc authoring component with chunked generated meshes.

Why

Large-world editing needs native terrain data that saves as stable authoring state and hydrates into render/collider output.

Implementation notes

Define versioned TerrainDesc with bounded inline height grid, chunk size, world scale, base Material/Instance reference, collision, and generation settings.
Hydrate deterministic chunked meshes and optional trimesh colliders.
Keep generated chunks out of saved scenes.
Add first-class terrain actor identity, registry metadata, inspector basics, reflected history, validation, and a committed showcase.
Material layer weights and exact terrain Surface/Solari parity remain owned by #24.

Acceptance criteria

Terrain authoring data serializes and migrates safely.
Hydration produces visible chunked mesh output.
Generated chunks/colliders do not leak into saves.
Terrain can be selected and inspected like other authoring actors.

Tests/docs

Serialization, topology, hydration/cleanup, registry, workspace, project-validation, and live native-Wayland evidence are linked in the closing comment.

## Summary Add a height-grid-backed `TerrainDesc` authoring component with chunked generated meshes. ## Why Large-world editing needs native terrain data that saves as stable authoring state and hydrates into render/collider output. ## Implementation notes - Define versioned `TerrainDesc` with bounded inline height grid, chunk size, world scale, base Material/Instance reference, collision, and generation settings. - Hydrate deterministic chunked meshes and optional trimesh colliders. - Keep generated chunks out of saved scenes. - Add first-class terrain actor identity, registry metadata, inspector basics, reflected history, validation, and a committed showcase. - Material layer weights and exact terrain Surface/Solari parity remain owned by #24. ## Acceptance criteria - [x] Terrain authoring data serializes and migrates safely. - [x] Hydration produces visible chunked mesh output. - [x] Generated chunks/colliders do not leak into saves. - [x] Terrain can be selected and inspected like other authoring actors. ## Tests/docs Serialization, topology, hydration/cleanup, registry, workspace, project-validation, and live native-Wayland evidence are linked in the closing comment.


1001 KiB

Rbanh added this to the M3 - Terrain and physics placement milestone 2026-06-06 01:48:05 -04:00

Rbanh added the

labels 2026-06-06 01:48:05 -04:00

Rbanh referenced this issue

2026-06-06 01:49:27 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1

Rbanh closed this issue

2026-07-12 18:44:34 -04:00

Rbanh commented

2026-07-12 18:44:35 -04:00

Acceptance complete

Implementation and evidence: ed21bcc

Delivered:

versioned, bounded, finite inline TerrainDesc height grid with scale, chunking, shared base Material/Instance reference, collision, and shadow settings;
deterministic chunk meshes with normals, UVs, tangents, U32 indices, optional Avian trimesh colliders, owner/chunk markers, and cleanup;
first-class Terrain actor kind, hierarchy/viewport identity, registry-driven Add Component, inspector validation, guarded flat resize, and reflected history transactions;
committed terrain_authoring_showcase.scn.ron fixture with stable registry identity;
ADR 0039, terrain workflow guide, root checklist, and evaluation record.

Verification:

4 focused descriptor/topology/hydration/cleanup tests;
editor registry reflection contract;
cargo fmt --all -- --check;
cargo check --workspace --all-targets;
cargo clippy --workspace --all-targets -- -D warnings;
cargo test --workspace;
cargo validate-levels --project .: 60 dependencies, 5 existing non-blocking findings, 0 blockers;
cargo bake-navigation --project . --check: 1 current artifact;
git diff --check.

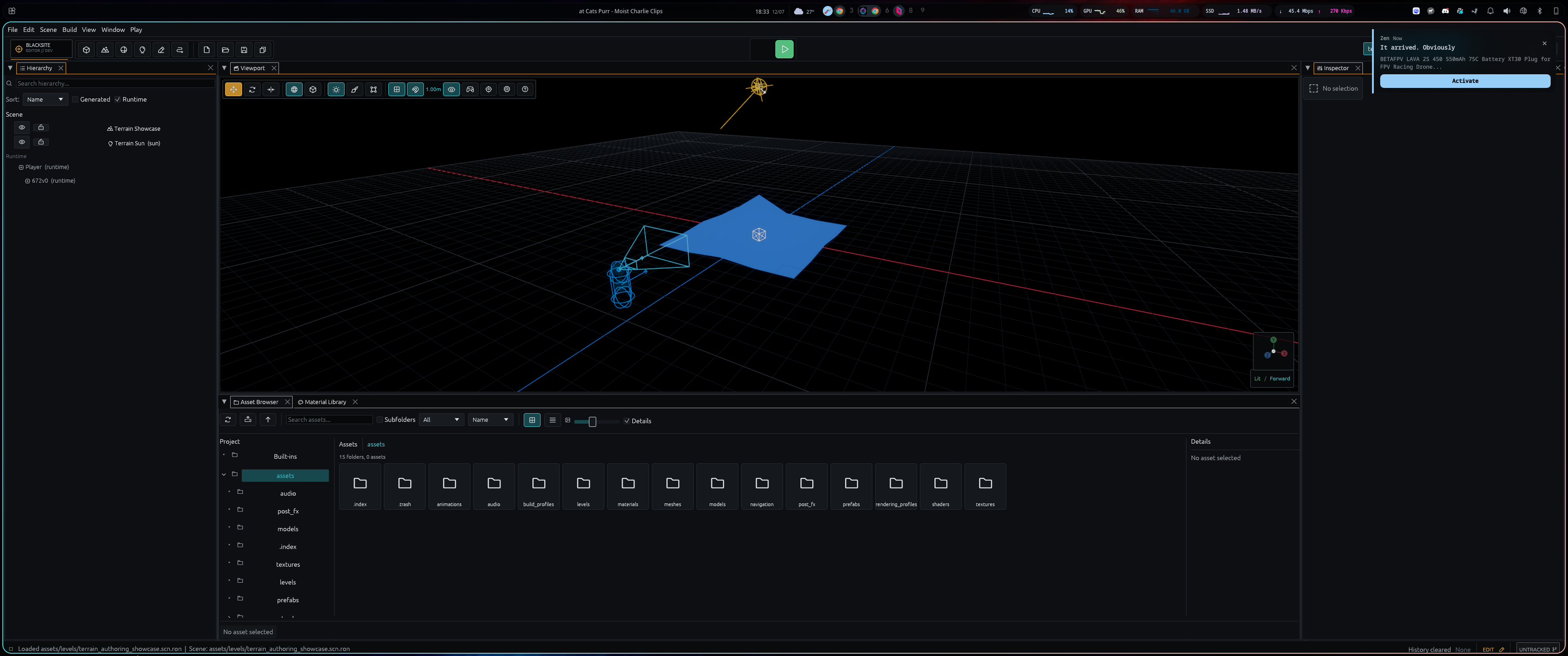

Live native-Wayland acceptance verified the asymmetric four-chunk terrain fixture and shared Material Instance in Forward rendering. Foundation terrain is explicitly excluded from Solari rather than rendered as a black/mismatched ray proxy; exact layer/Surface parity remains tracked by #24. Packaged acceptance remains deferred by project-owner direction.

## Acceptance complete Implementation and evidence: `ed21bcc` Delivered: - versioned, bounded, finite inline `TerrainDesc` height grid with scale, chunking, shared base Material/Instance reference, collision, and shadow settings; - deterministic chunk meshes with normals, UVs, tangents, U32 indices, optional Avian trimesh colliders, owner/chunk markers, and cleanup; - first-class Terrain actor kind, hierarchy/viewport identity, registry-driven Add Component, inspector validation, guarded flat resize, and reflected history transactions; - committed `terrain_authoring_showcase.scn.ron` fixture with stable registry identity; - ADR 0039, terrain workflow guide, root checklist, and evaluation record. ![Terrain foundation live acceptance](https://git.spacetrainclubhouse.com/attachments/d466c3e3-2721-4667-b397-e204ce3e78fc) Verification: - 4 focused descriptor/topology/hydration/cleanup tests; - editor registry reflection contract; - `cargo fmt --all -- --check`; - `cargo check --workspace --all-targets`; - `cargo clippy --workspace --all-targets -- -D warnings`; - `cargo test --workspace`; - `cargo validate-levels --project .`: 60 dependencies, 5 existing non-blocking findings, 0 blockers; - `cargo bake-navigation --project . --check`: 1 current artifact; - `git diff --check`. Live native-Wayland acceptance verified the asymmetric four-chunk terrain fixture and shared Material Instance in Forward rendering. Foundation terrain is explicitly excluded from Solari rather than rendered as a black/mismatched ray proxy; exact layer/Surface parity remains tracked by #24. Packaged acceptance remains deferred by project-owner direction.

Rbanh referenced this issue

2026-07-12 18:45:15 -04:00

BS-PR-707 - Production-readiness acceptance gate and release checklist #50

Rbanh referenced this issue

2026-07-12 18:45:16 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1
