BS-JD-305 - Collider authoring diagnostics and overlays #26

New Issue

Rbanh · 2026-06-06T01:48:07-04:00

Rbanh commented

2026-06-06 01:48:07 -04:00

Summary

Improve collider visualization, shape switching, and error reporting.

Why

Brushes, static meshes, terrain, and physics placement all need clear collider state and diagnostics.

Implementation notes

Added one authored/runtime collider-health service shared by the inspector, Collider viewport, Diagnostics panel, and physics placement.
Primitive overlays include world scale; static mesh colliders show cooked runtime bounds.
Semantic state colors distinguish ready, trigger, disabled, warning/stale, and invalid/missing collision.
Diagnostics cover missing/inactive/disabled authoring, invalid dimensions, stale mesh references or hydration, and colliders over 1,000 meters in world extent.
Shape switching preserves useful primitive extents and records one typed SetCollider history command.

Acceptance criteria

Collider overlays accurately show current authoring state.
Diagnostics identify missing/stale/invalid collider issues.
Shape switching is undoable and documented.
Physics placement can reuse diagnostics for prerequisites.

Evidence

Implemented and published on main in 0ce43fc.

The committed fixture is assets/levels/collider_diagnostics_showcase.scn.ron; the workflow and diagnostic contract are documented in docs/editor/collider-authoring.md.

Verification

cargo test --workspace --all-targets --no-fail-fast (224 editor tests; full workspace green)
cargo clippy --workspace --all-targets -- -D warnings
cargo fmt --all -- --check
git diff --check
target/debug/validate-levels: 62 dependencies, 5 existing non-blocking findings, 0 blocking errors

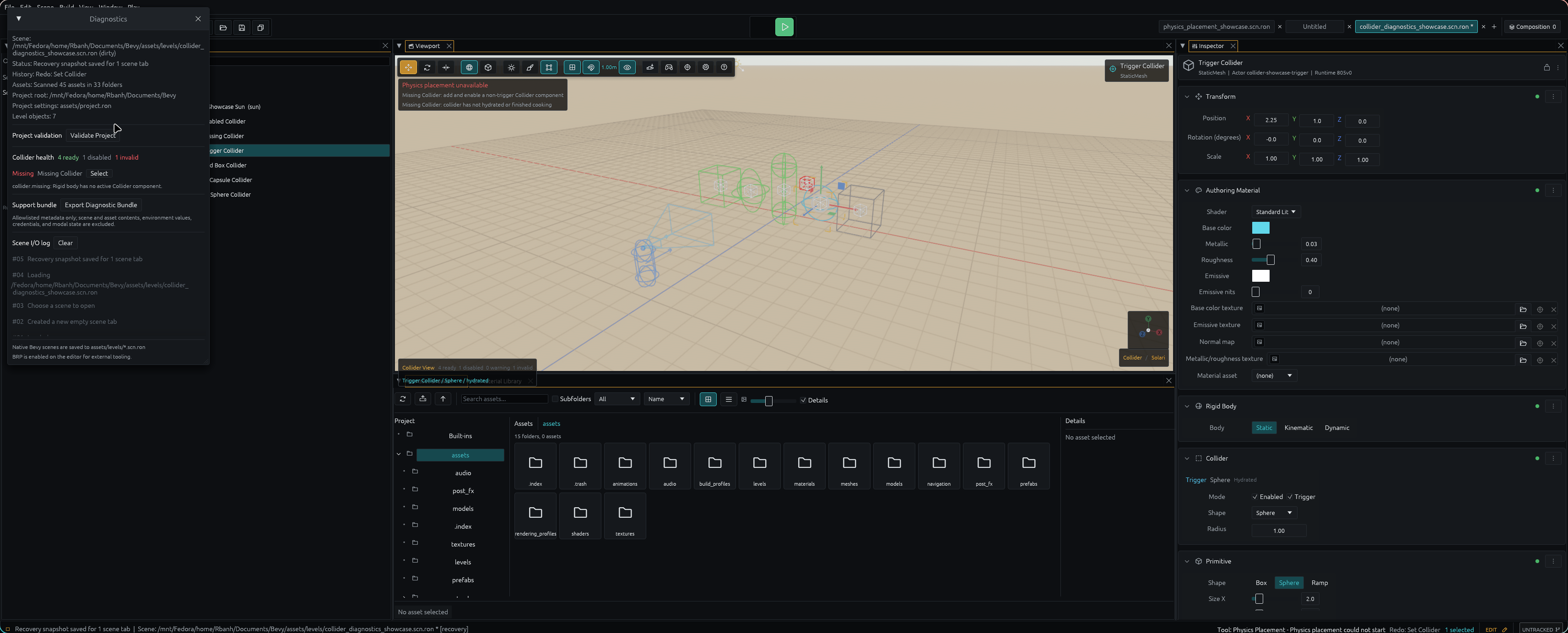

Live Wayland QA: semantic overlays, scaled shapes, HUD counts/selection, Diagnostics actor link, shape switch/undo, and physics-placement rejection reuse
Packaged tests deferred by current project instruction.
