Summary

Let users select props, release them into simulated gravity, then commit or cancel settled transforms.

Why

Physics placement is a practical prop-authoring workflow that uses the existing Avian/PIE foundation without manually tuning every transform.

Implementation notes

Added a transactional Edit-mode placement session for selected authored props with rigid-body and non-trigger collider data.
Placement runs deterministic Avian steps while normal Edit physics remains paused.
Selected bodies become temporary dynamics; unrelated movable bodies are frozen as collision surfaces and restored exactly.
Commit records one grouped transform history operation. Cancel restores transforms and runtime physics state without dirtying history.
Integrated controls and live status into the existing horizontal viewport toolbar.

Acceptance criteria

Selected props can drop/settle onto colliders.
User can commit or cancel without corrupting authored state.
Tool reports missing collider/rigid body prerequisites.
Undo restores pre-placement transforms.

Evidence

Implemented and published on main in 0e7aed4.

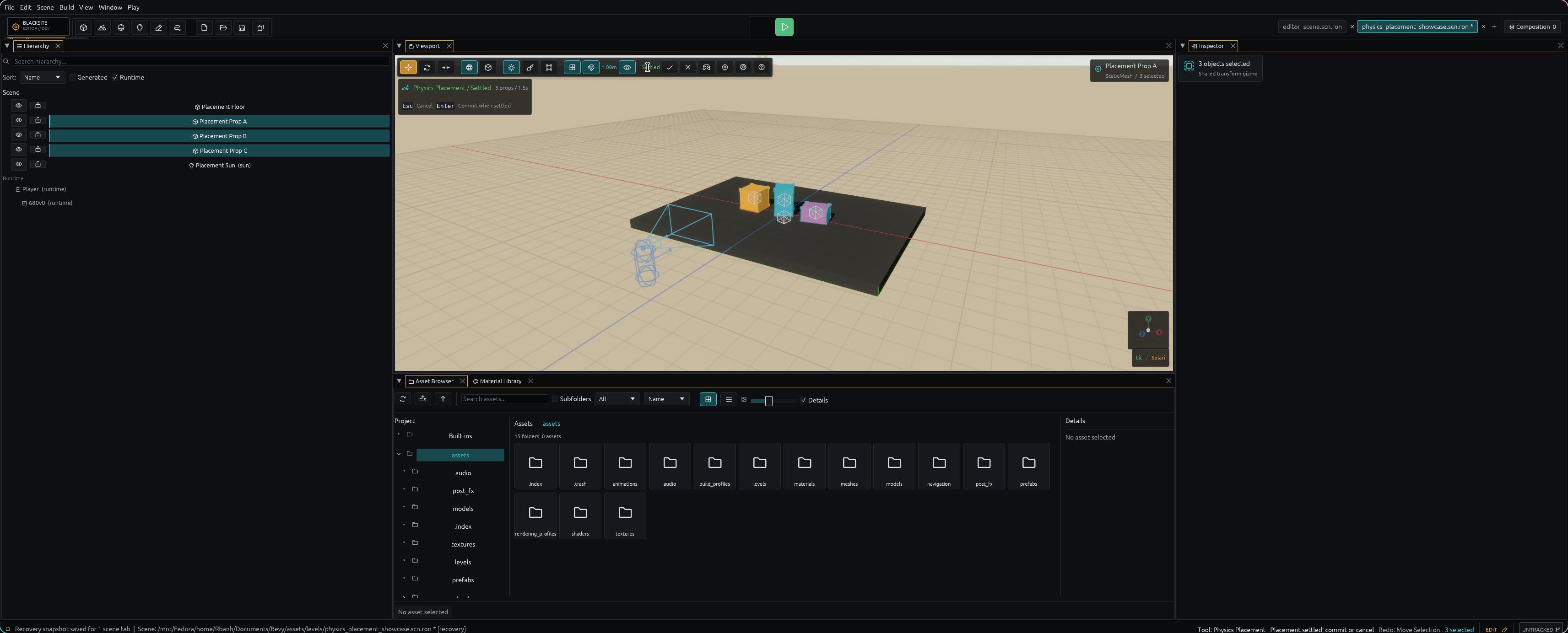

The committed fixture is assets/levels/physics_placement_showcase.scn.ron; the workflow and transactional contract are documented in docs/editor/physics-placement.md and ADR 0041.

Verification

cargo test --workspace --all-targets --no-fail-fast
cargo clippy --workspace --all-targets -- -D warnings
cargo fmt --all -- --check
git diff --check
target/debug/validate-levels: 61 dependencies, 5 existing non-blocking findings, 0 blocking errors
Live Wayland QA: settle, cancel, commit, undo, redo, scene switching, toolbar/HUD, and missing-prerequisite feedback
Packaged tests deferred by current project instruction.
