Summary

Implement raise/lower, flatten, smooth, and noise sculpt brushes with one undo entry per stroke.

Why

Terrain becomes useful only when editable through fast, predictable viewport brush tools.

Implementation notes

Add modal sculpt tool state and brush radius/strength controls.
Implement raise/lower, flatten, smooth, and noise operations.
Preview brush footprint and affected terrain area.
Group each continuous stroke into one undo entry.

Acceptance criteria

Terrain sculpt modes modify heightmap data visibly.
Brush preview tracks cursor and terrain surface.
Escape/right-click cancels active stroke safely.
Undo/redo operates per stroke, not per sample.

Tests/docs

Heightmap operation tests and undo grouping tests. Update README controls and docs/editor terrain workflow.

Committed evaluation record

## Summary Implement raise/lower, flatten, smooth, and noise sculpt brushes with one undo entry per stroke. ## Why Terrain becomes useful only when editable through fast, predictable viewport brush tools. ## Implementation notes - Add modal sculpt tool state and brush radius/strength controls. - Implement raise/lower, flatten, smooth, and noise operations. - Preview brush footprint and affected terrain area. - Group each continuous stroke into one undo entry. ## Acceptance criteria - [x] Terrain sculpt modes modify heightmap data visibly. - [x] Brush preview tracks cursor and terrain surface. - [x] Escape/right-click cancels active stroke safely. - [x] Undo/redo operates per stroke, not per sample. ## Tests/docs Heightmap operation tests and undo grouping tests. Update README controls and docs/editor terrain workflow. ![Terrain Raise stroke with horizontal controls and one stroke undo](https://git.spacetrainclubhouse.com/attachments/be1cce8e-cf48-47b0-ad64-8953e973cfe8) [Committed evaluation record](https://git.spacetrainclubhouse.com/Falling-Metal-Interactive/Blacksite/src/commit/293811a/docs/editor/evaluations/terrain-sculpt-tools/README.md)


744 KiB

Rbanh added this to the M3 - Terrain and physics placement milestone 2026-06-06 01:48:05 -04:00

Rbanh added the

labels 2026-06-06 01:48:05 -04:00

Rbanh referenced this issue

2026-06-06 01:49:27 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1

Rbanh referenced this issue

2026-07-12 18:45:16 -04:00

BS-JD-ROADMAP - Jackdaw-inspired editor production roadmap #1

Rbanh commented

2026-07-12 19:52:59 -04:00

Acceptance complete

Implementation and live evidence: 293811a

Delivered:

modal Raise, Lower, Flatten, Smooth, and deterministic Noise brushes;
terrain-local ray sampling with exact vertical-ray handling and interpolated continuous dabs;
colored terrain-following footprint plus compact radius/strength controls in the existing horizontal viewport toolbar;
exact pre-stroke restore on Escape/right-click;
restore-before-transaction commit yielding one reflected undo entry per completed stroke;
exclusive viewport pointer ownership, toolbar click-through prevention, and transform-gizmo suppression while sculpting;
README controls, terrain workflow documentation, implementation plan, and committed evaluation record.

Verification:

7 focused brush math, ray hit, exact cancel, grouped undo/redo, and gizmo ownership tests;
cargo fmt --all -- --check;
cargo check --workspace --all-targets;
cargo clippy --workspace --all-targets -- -D warnings;
cargo test --workspace: 211 editor tests and all other workspace tests green, with the one intentional manual scene migration test ignored;
cargo validate-levels --project .: 60 dependencies, 5 existing non-blocking findings, 0 blockers;
cargo bake-navigation --project . --check: 1 current artifact;
git diff --check.

Native Wayland QA verified stable selection/tool activation, toolbar fit, footprint tracking, visible Raise deformation, no transform gizmo during sculpt, and exactly Undo: Raise Terrain after release. Packaged acceptance remains deferred by project-owner direction.

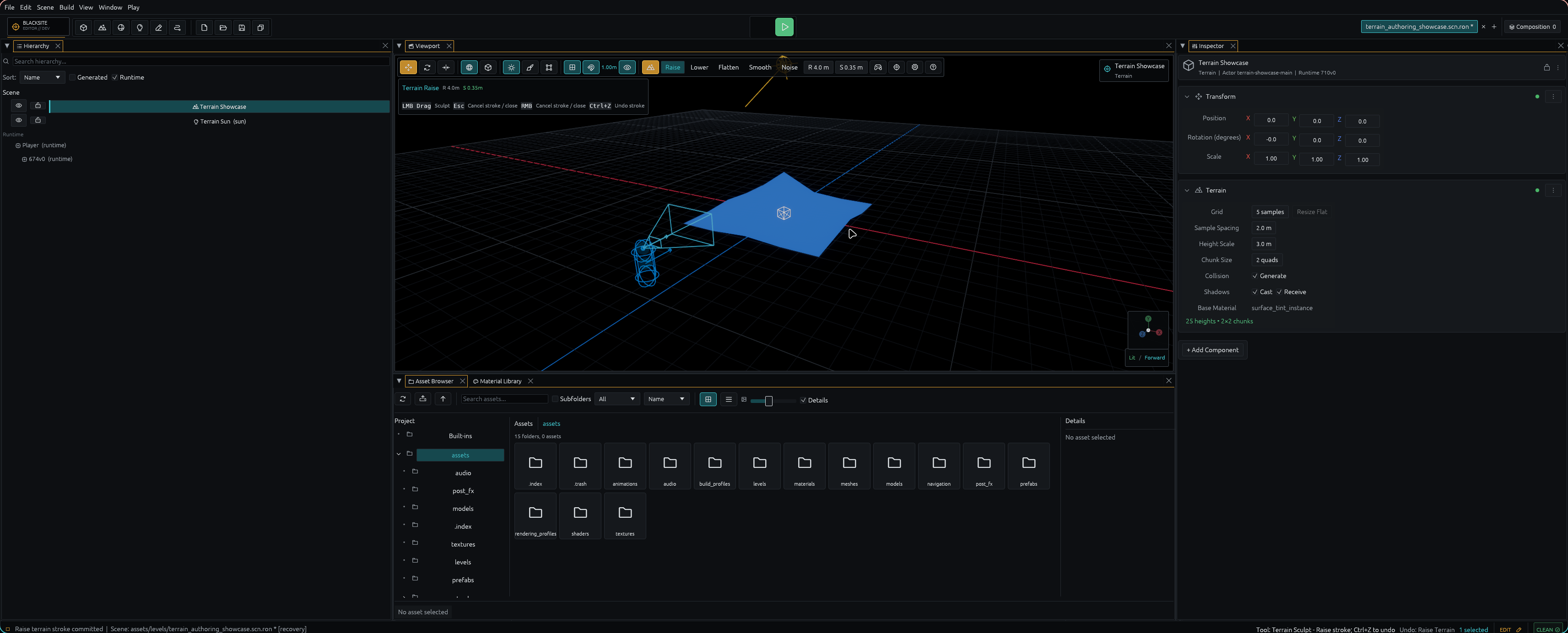

## Acceptance complete Implementation and live evidence: [`293811a`](https://git.spacetrainclubhouse.com/Falling-Metal-Interactive/Blacksite/commit/293811a) Delivered: - modal Raise, Lower, Flatten, Smooth, and deterministic Noise brushes; - terrain-local ray sampling with exact vertical-ray handling and interpolated continuous dabs; - colored terrain-following footprint plus compact radius/strength controls in the existing horizontal viewport toolbar; - exact pre-stroke restore on Escape/right-click; - restore-before-transaction commit yielding one reflected undo entry per completed stroke; - exclusive viewport pointer ownership, toolbar click-through prevention, and transform-gizmo suppression while sculpting; - README controls, terrain workflow documentation, implementation plan, and committed evaluation record. ![Native Wayland terrain sculpt acceptance](https://git.spacetrainclubhouse.com/attachments/be1cce8e-cf48-47b0-ad64-8953e973cfe8) Verification: - 7 focused brush math, ray hit, exact cancel, grouped undo/redo, and gizmo ownership tests; - `cargo fmt --all -- --check`; - `cargo check --workspace --all-targets`; - `cargo clippy --workspace --all-targets -- -D warnings`; - `cargo test --workspace`: 211 editor tests and all other workspace tests green, with the one intentional manual scene migration test ignored; - `cargo validate-levels --project .`: 60 dependencies, 5 existing non-blocking findings, 0 blockers; - `cargo bake-navigation --project . --check`: 1 current artifact; - `git diff --check`. Native Wayland QA verified stable selection/tool activation, toolbar fit, footprint tracking, visible Raise deformation, no transform gizmo during sculpt, and exactly `Undo: Raise Terrain` after release. Packaged acceptance remains deferred by project-owner direction.
