Material Library And Targeted Drop Evaluation

Date: 2026-07-12 Branch: codex/material-library-targeted-drop Implementation commit: 02247f0

This record captures live acceptance for the docked Material Library and exact viewport Material/Texture assignment workflow. The permanent user workflow lives in the material-system guide, and the implementation plan is material_library_and_targeted_drop_2026-07-12.plan.md.

Live Editor Evidence

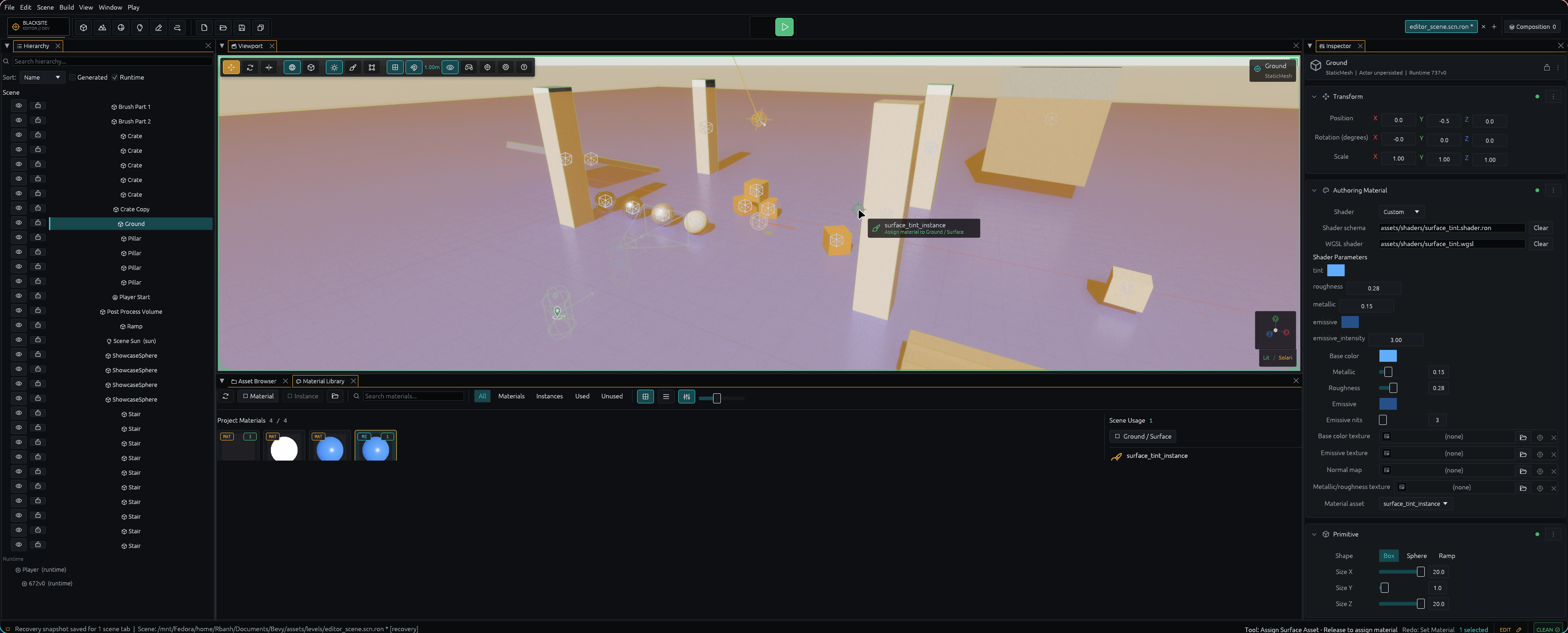

The image below is a native Wayland capture from the debug editor. The assignment was previewed, committed once, undone, previewed again, and canceled with Escape; the authored scene was not saved.

The Material Library resolves surface_tint_instance through its base Material and sparse overrides. While the pointer is over the viewport, the green card names Ground / Surface, the inspector reflects the transient material, and the scene-usage section identifies the exact actor and surface. The preview does not push history or dirty the scene.

Acceptance Results

Area	Result	Evidence
Catalog workflow	Pass	Window menu entry, persisted bottom dock, search, Material/Instance/Used/Unused filters, grid/list views, resolved instance thumbnail, and details selection
Exact targeting	Pass	Primitive preview resolves one actor surface; automated coverage resolves one stable renderer slot and one stable brush face
Feedback	Pass	Neutral acquisition changes to green valid actor/surface feedback; invalid payload and read-only paths are covered by focused tests
Preview lifecycle	Pass	Live material and usage update without a history entry; Escape restores the exact prior material
Commit lifecycle	Pass	Release creates one typed history/operator entry; undo restores the prior surface
Startup hygiene	Pass	Relaunching the authored showcase after visibility-order correction produced no Bevy hierarchy warnings
Packaged acceptance	Deferred	Explicitly deferred by project-owner direction; no packaged result is claimed here

Automated Verification

Command/suite	Result
cargo fmt --all -- --check	Pass
cargo check --workspace --all-targets	Pass
cargo clippy --workspace --all-targets -- -D warnings	Pass
cargo test --workspace	Pass
Editor strict Clippy with dev and hot-reload features	Pass
cargo validate-levels --project .	59 dependencies, 5 non-blocking findings, 0 blocking errors
cargo bake-navigation --project . --check	1 deterministic artifact current
git diff --check	Pass
