Renderer, Material, and Component Foundation Evaluation

Date: 2026-07-11
Branch: codex/renderer-material-component-foundation

This record captures implementation evidence for the dedicated skinned renderer, shared Material and Material Instance workflow, registry-driven authoring components, and custom Surface contract. The permanent design contracts live in ADR 0033, ADR 0034, ADR 0035, and ADR 0036. The user workflow lives in the material-system guide.

Live editor evidence

All images below are native Wayland captures from the running editor. The temporary actors and assignments used for visual verification were not saved into the authored scene.

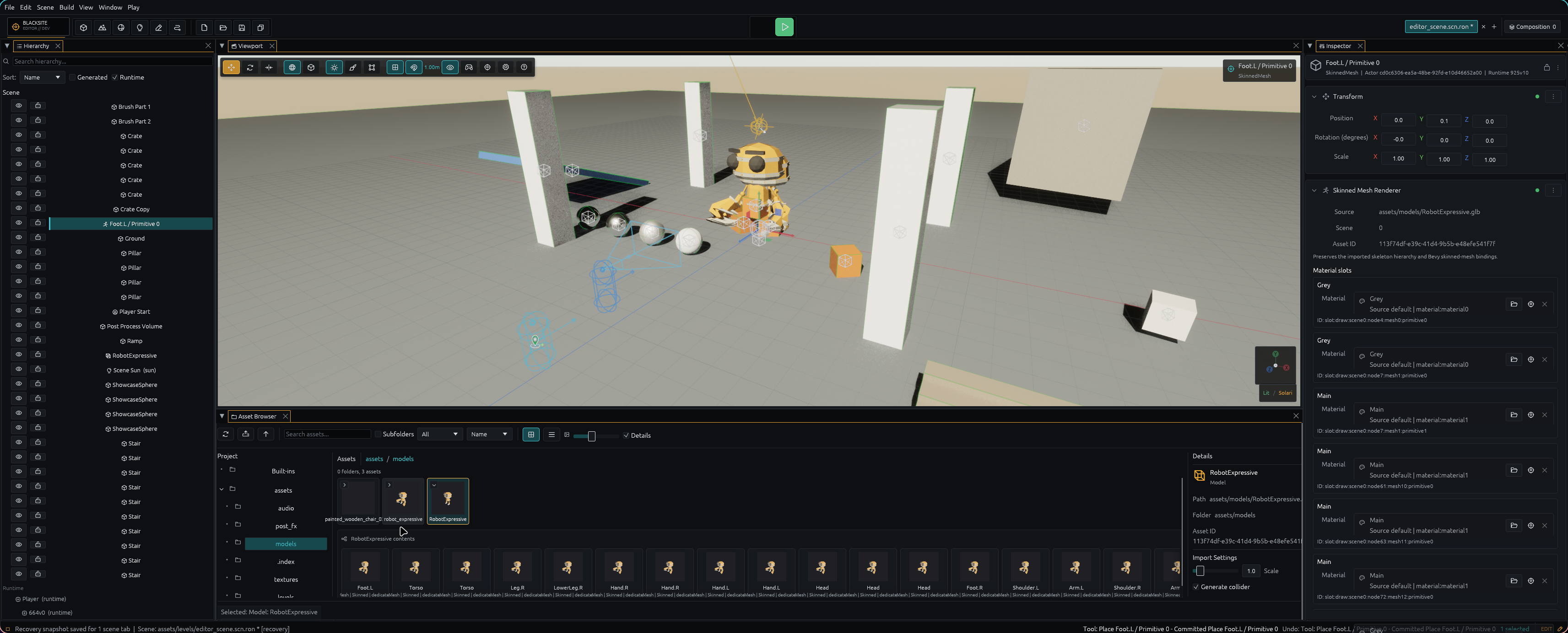

Dedicated skinned renderer and stable material slots

The actor is hydrated through SkinnedMeshRenderer, not StaticMeshRenderer. Its imported hierarchy remains intact, the configured default Standing clip is sampled in edit mode, and every draw binding exposes a stable slot ID plus source-material fallback.

Shared custom Surface assigned through a Material Instance

Applying surface_tint_instance updates the existing hydrated draw bindings in place. The visible blue Surface evaluation does not respawn the hierarchy or reset the sampled pose.

Sparse Material Instance authoring

Instances reference one direct base Material. Unchecked values inherit; selecting or dropping a texture creates only that override, and Clear removes the binding so inheritance resumes.

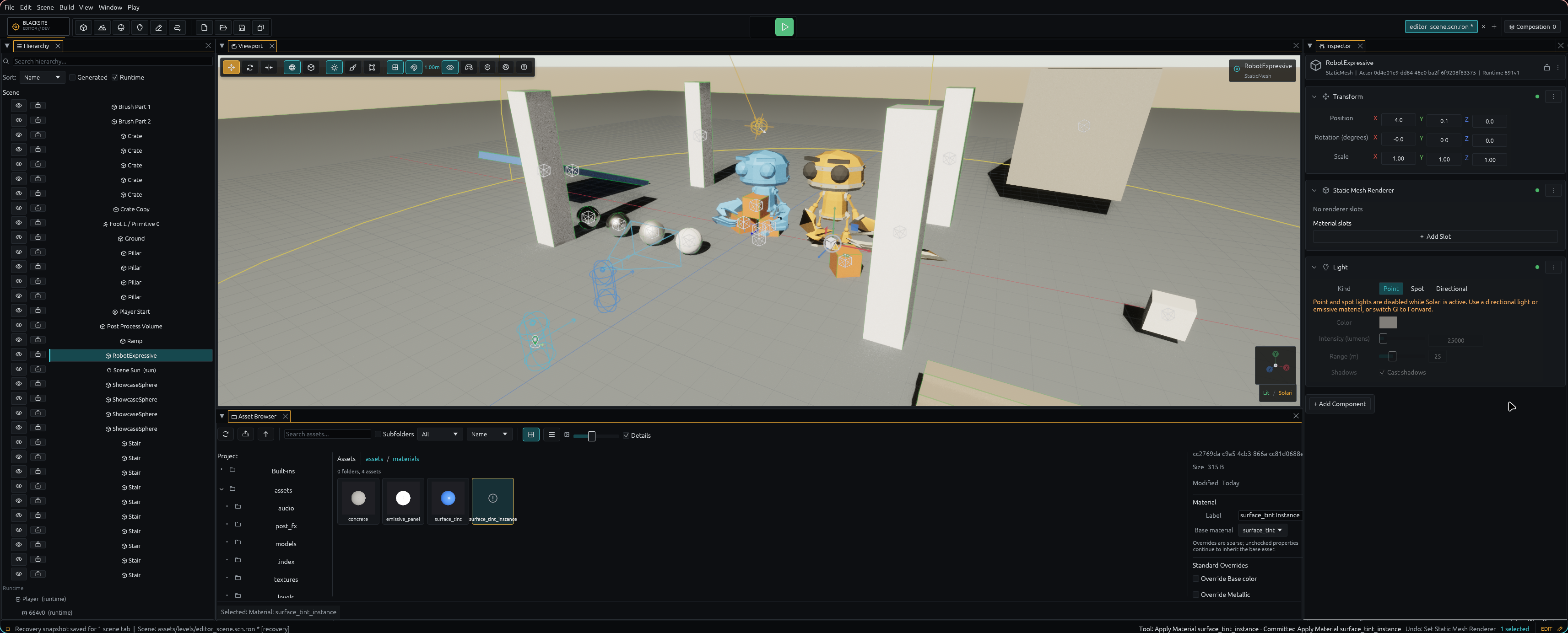

Registry-driven component composition

The actor combines renderer and light components without an ActorKind exclusivity rule. The registry owns add/remove/reset/copy/paste/history/persistence behavior; ActorKind remains a derived compatibility and presentation hint.

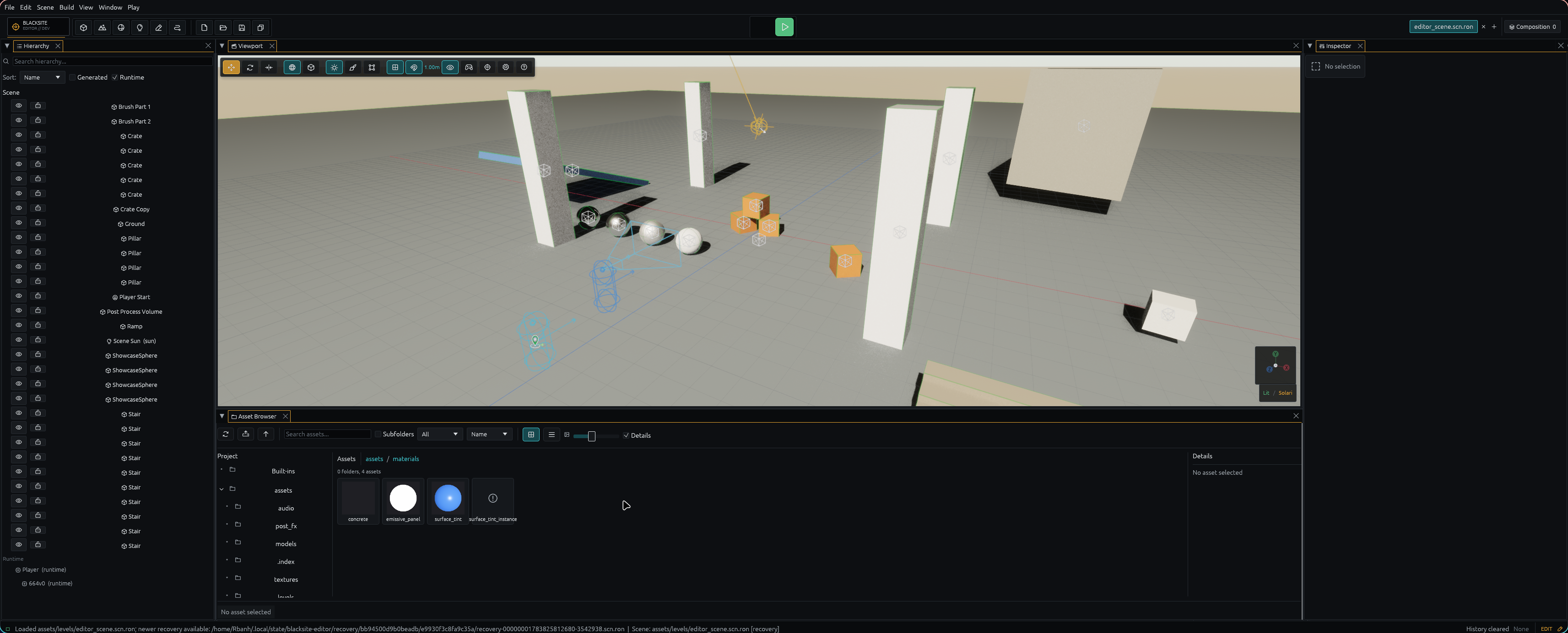

Larger material thumbnail previews

Material spheres now fill roughly 78-81% of the preview while retaining edge padding. Model and mesh-subasset framing is unchanged.

Additional captures:

• Material editor and Create Instance action
• Registry-driven Add Component categories

Acceptance results

Area	Result	Evidence
Dedicated static/skinned ownership	Pass	Separate authored/hydrated renderer types; rigged/animated manifests are rejected by static hydration
Pose lifecycle	Pass	Explicit stable default clip; transform and morph-weight baseline restore on stop, controller removal, preview reset, and PIE exit
Renderer material slots	Pass	Stable named IDs, imported fallback, explicit assignment, orphan retention, and in-place material patching
Material assets/instances	Pass	Versioned shared assets, direct-base sparse instances, transient property blocks, Apply/Revert/Create Instance
Texture parameters	Pass	Project-wide picker includes imported texture subassets; base/schema/stored/instance slots share browse, drop, reject, and clear behavior
Component lifecycle	Pass	Stable registry IDs, reflected transactions/history, persistence allowlist, independent active state, and compatible composition
Surface raster/Solari semantics	Pass for eligible geometry	Shared ABI packing, evaluator, textures, normal/emissive/unlit values, and cutout predicate
Project migration	Pass	Transactional schema-v4 upgrader, backup/rollback path, canonical slots and active-state split; second dry run is empty
Project validation	Pass	59 dependencies, 5 non-blocking findings, 0 blocking errors

Automated verification

Command/suite	Result
cargo test -p shared --offline	84 passed
cargo test -p scene --offline	64 passed, 1 ignored migration fixture
cargo test -p game --lib --offline	37 passed
cargo test -p game_hot --lib --offline	16 passed
cargo test -p editor --lib --offline	171 passed
cargo test -p blacksite_surface --offline	3 passed plus doc tests
cargo test -p bevy_solari --lib --offline	1 passed
cargo --locked --offline validate-levels	0 blocking errors
cargo --offline upgrade-project --project . --json	No pending changes or warnings
cargo fmt --all -- --check / git diff --check	Pass

Deliberate boundary

Bevy 0.19's maintained Solari path does not expose dynamic post-morph/post-skin vertex buffers and BLAS updates. Skinned and morph-deformed actors therefore remain visible in raster but are omitted from ray tracing with an actionable diagnostic. This is safer than tracing a stale bind-pose ghost; dynamic deformed BLAS support remains future work and the corresponding Gitea acceptance item stays open.
